MK60 ABS control unit

Because only the original is original

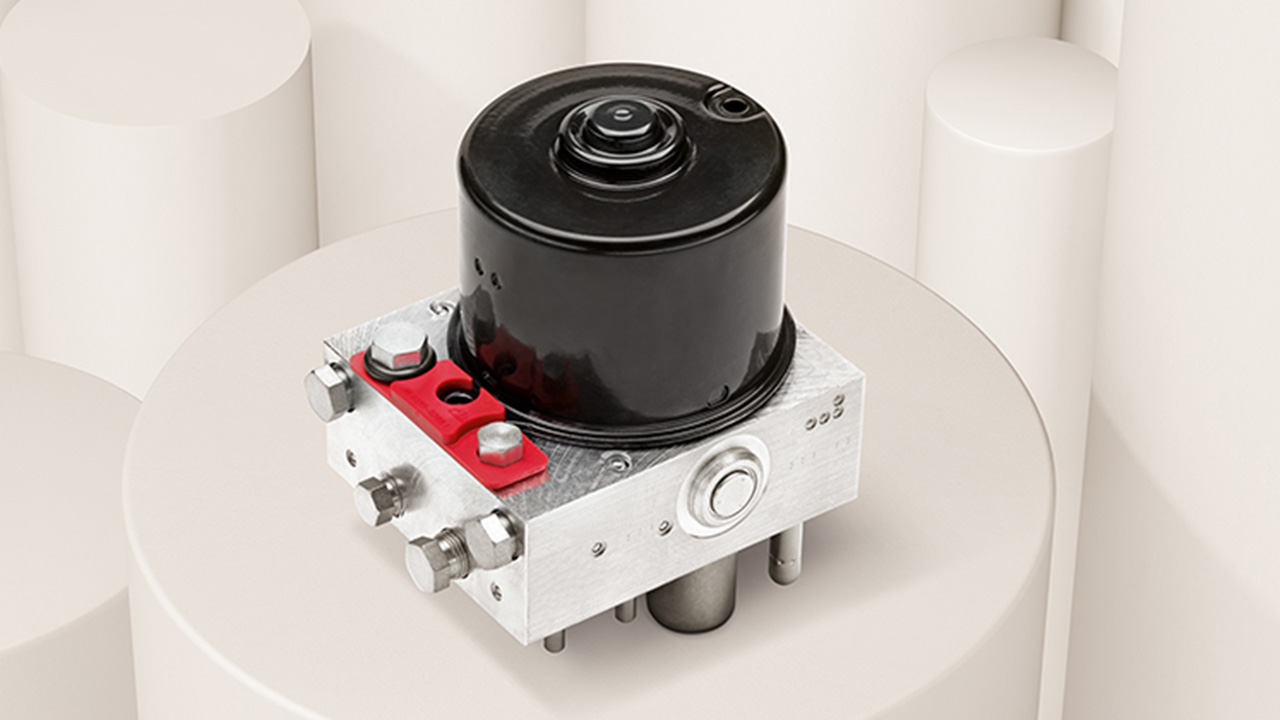

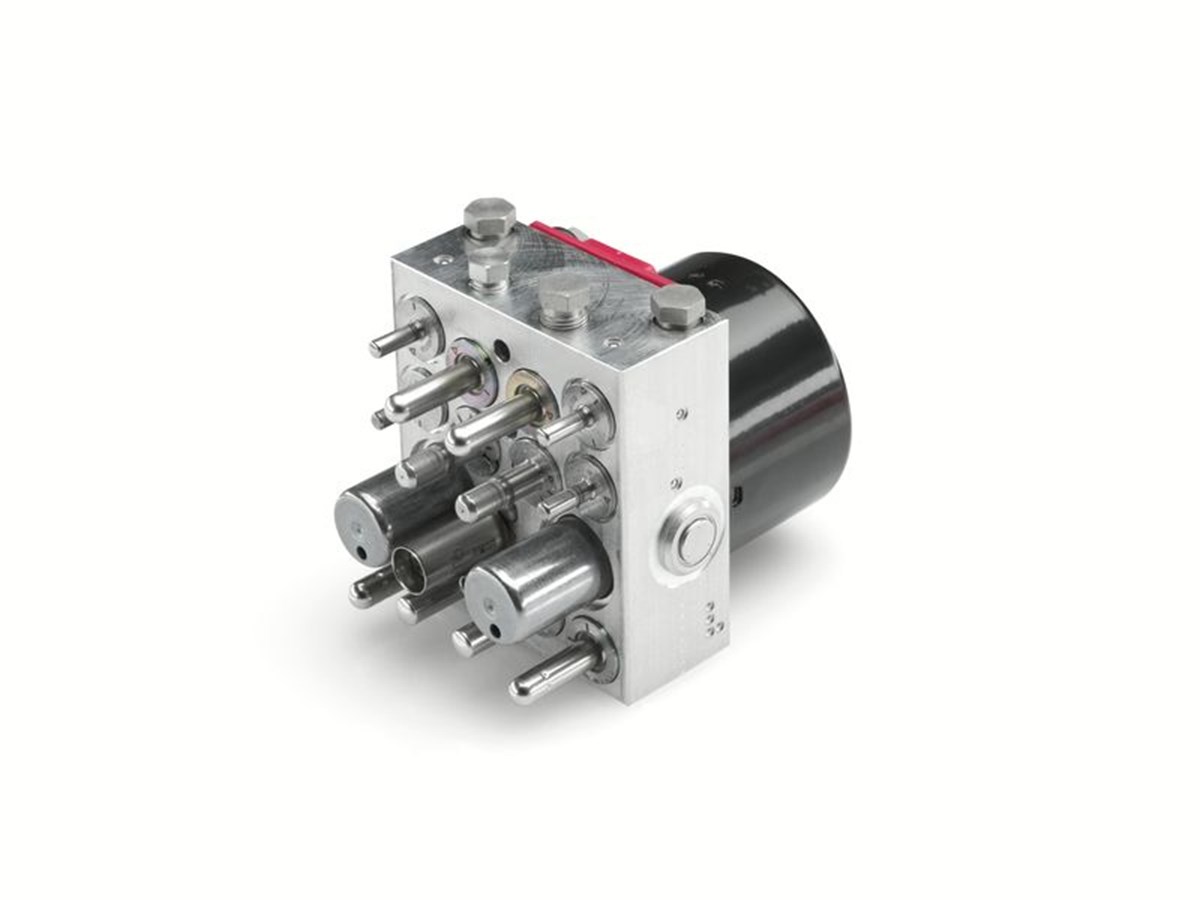

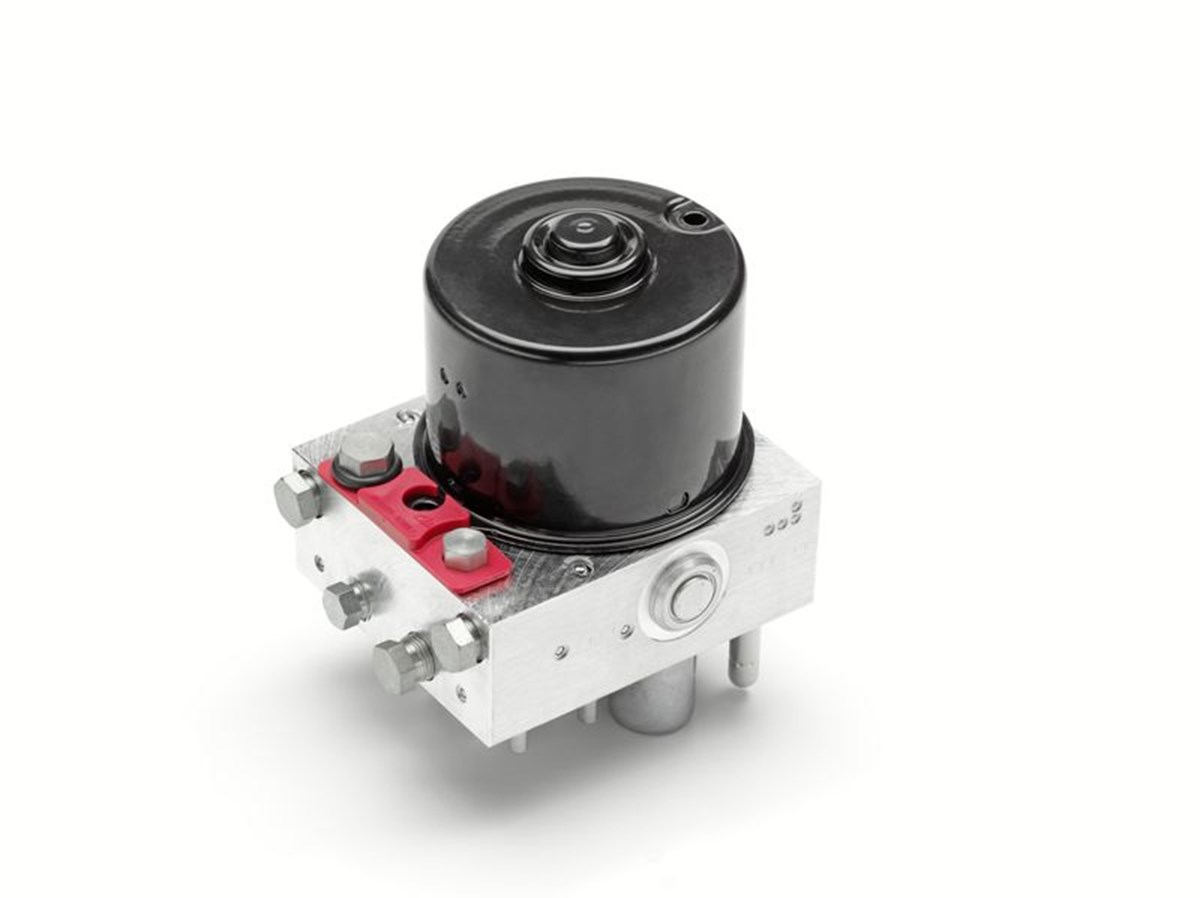

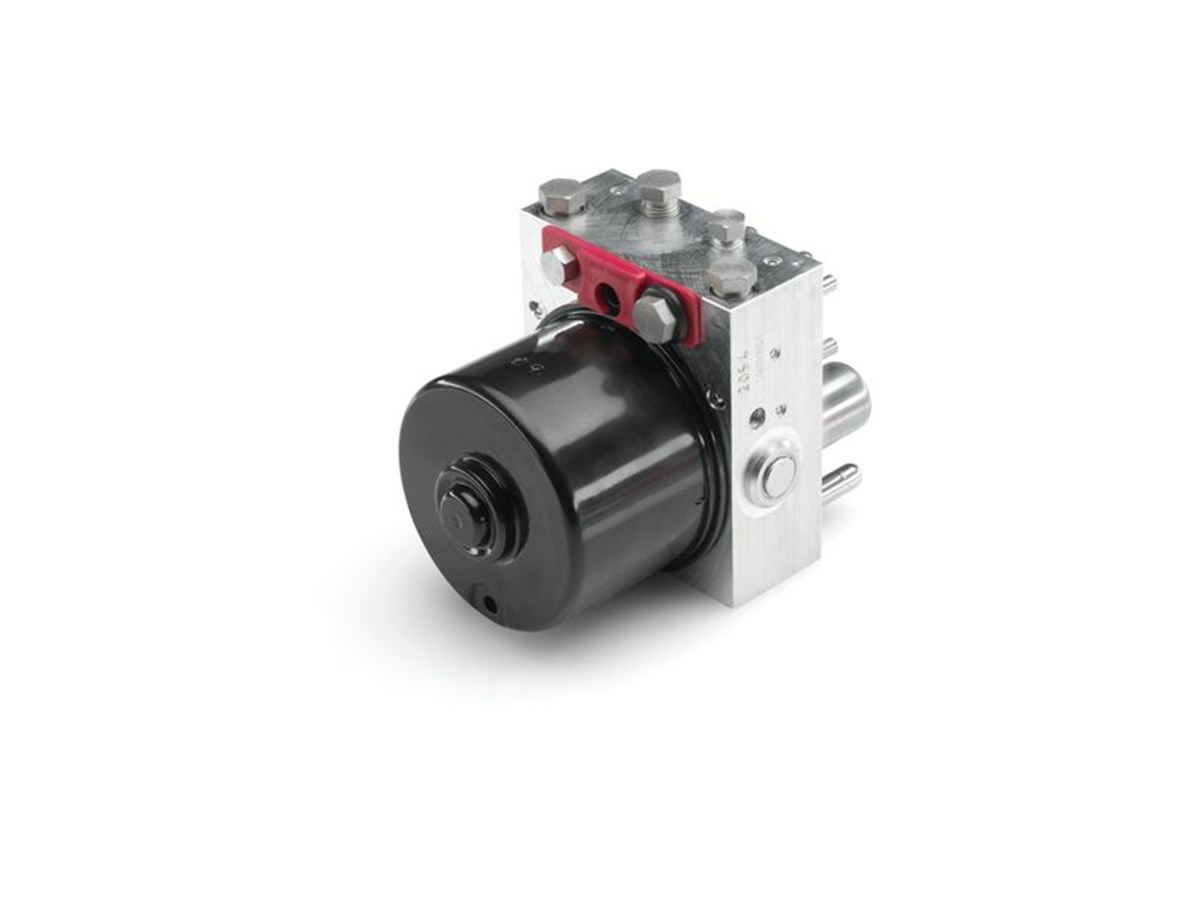

Available now: the Hydraulic Control Unit (HCU) of the ATE MK60.

Now available as an original part: the Hydraulic Control Unit (HCU) for the ATE MK60, including accessories.

Precise braking when you need it

Reliable braking – even in wet conditions and on bends: The MK60 ABS control unit makes it possible. By repeatedly lowering and raising the brake pressure it increases driving safety and reduces wear.

You can rely on it

Greater safety in extreme situations: In the event of emergency braking, the MK60 ABS control unit ensures increased directional stability, better maneuverability and a shorter braking distance in wet conditions. And you can be sure that you can still brake normally if the electronic unit should ever fail.

Instructions and video for reliable assembly

The included assembly instructions and our assembly video show in detail how to remove and replace the ABS control unit and replace the Hydraulic Control Unit. Everything you need to know is explained.

The advantages at a glance

  • The Hydraulic Control Unit (HCU) is now available for the first time in the independent automotive aftermarket.
  • Simple handling: Remove the entire HECU (Hydraulic & Electronic Control Unit), replace the old HCU (Hydraulic Control Unit) with the new one and screw it to the ECU (Electronic Control Unit).

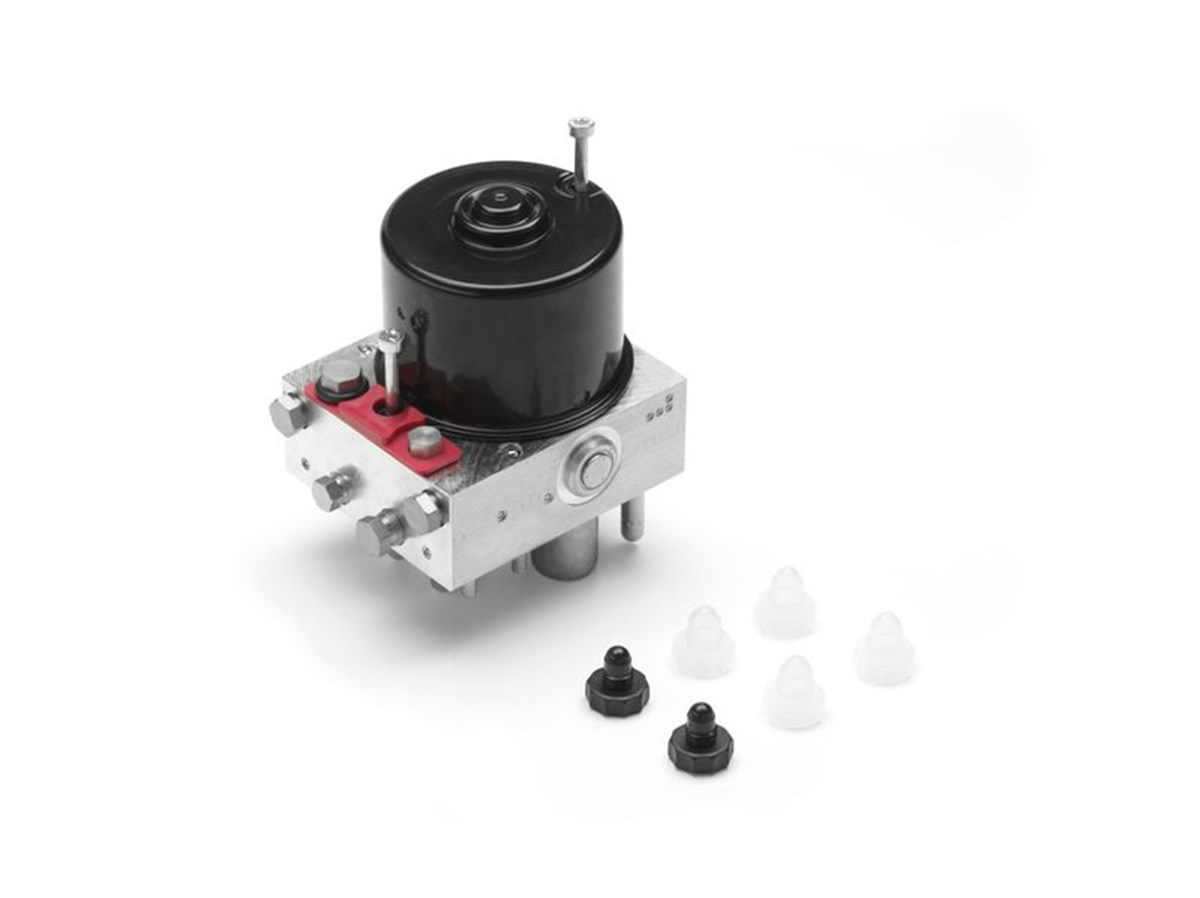

  • Included:
    • Motor
    • Valve block
    • Retaining device (see assembly instructions and assembly video)
    • 2 new screws
    • 6 stop plugs for the old HCU
    • Assembly instructions

Step-by-step explanation: How to assemble the Hydraulic Control Unit of the ATE MK60

Table

The Hydraulic Control Unit of the ATE MK60 is available for the following vehicle manufacturers:

Manufacturer OE number Model series Article number
AUDI 1K0 698 517 B A3 / A3 Sportback 24.9145-0001.2
BMW 34 51 6 797 896
HECU:
34 51 6 863 354,
34 51 6 862 870
1 Series sedan / coupe / convertible, 3 Series sedan / touring / coupe / convertible 24.9145-0003.2
FORD 8M51-2B373-AA
1692659
C-MAX I, FOCUS C-MAX, FOCUS II, KUGA I  24.9145-0004.2
MAZDA DJY6437A0 various 24.9145-0002.2
MAZDA BRYV437A0 various 24.9145-0004.2
SEAT 1K0 698 517 B ALTEA, LEON II, TOLEDO III  24.9145-0001.2
SKODA 1K0 698 517 B OCTAVIA II  24.9145-0001.2
VOLKSWAGEN 1K0 698 517 B CADDY III, EOS, GOLF Plus, GOLF V, GOLF V Variant, JETTA V, TOURAN I    24.9145-0001.2
VOLVO 36001319 C30 coupe, C70 II convertible, S40 II, V50 24.9145-0005.2

Assembly video
